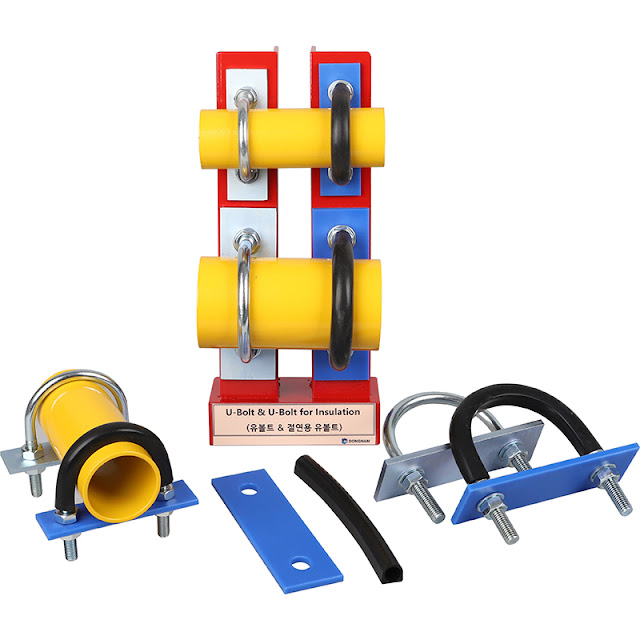

Dongnam U-Bolt & U-Bolt for Insulation



U Bolt & U Bolt for Insulation

U BOLT

Material: A36 / ASTM A275 Tp. 304 / ASTM A276 Tp. 316 / ASTM A193 Gr.B7 / ASTM A193 Gr.B8 / ASTM A193 Gr.B8M

Plating Specification:

1. H.D.G: ASTM A153M CL.C-Average 53μm or more

2. E.G: ASTM CL.5-At least 5μm

3. Plastic coating: U-Bolt center value is as wide as 2 times the plastic coating thickness.

U-BOLT for Insulation

Material: A36 / ASTM A276 Tp.304 / ASTM A276 Tp.316 / ASTM A193 Gr.B7 / ASTM A193 Gr.B8 / ASTM A193 Gr.B8M

Plating specification:

1. ASTM A153M CL.C-Average 53μm or more

2. ASTM B633 CL.5-At least 5μm

Silicone Tubes for Insulating U-BOLT

Material: Silicone

Color: Black

Performance:

1. Hardness: 65HS

2. Use Temperature: -75℃ ~ 200℃

3. Elastostatic maintenance, biocompatibility at excellent insulation, heat resistance, weather resistance, and chemical resistance low temperatures

Pad for the Insulation U-BOLT

Material: MC(Mono Cast Nylon)901

Color: Blue

Performance:

1. Hardness: R-Scale 115~125

2. Use Temperature: -40℃~120℃

3. Excellent insulation, heat resistance, chemical resistance, excellent mechanical strength, abrasion resistance

Applications

Dongnam is one of the most reliable and qualified manufacturers.

We will strive to satisfy the customers with the best quality.

Bedrock Company is the sole overseas distributor of Dongnam.

For further information or quotation, please feel free to contact us.
